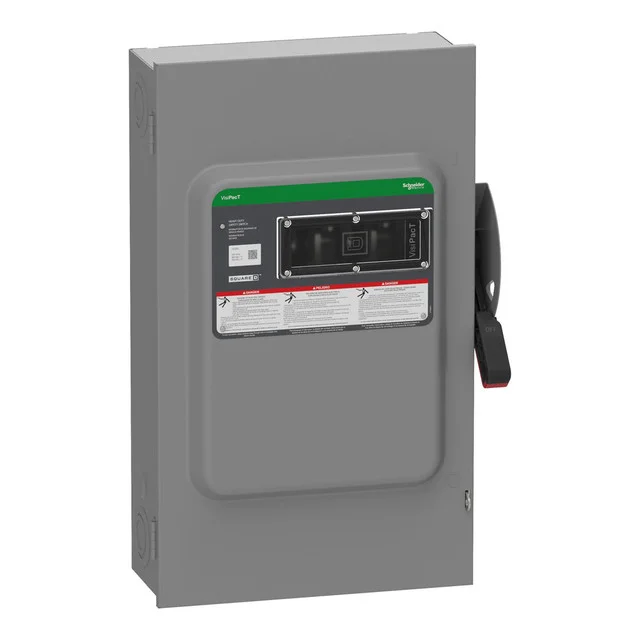

Square D VH364R Heavy Duty Fusible Safety Switch, 200A 600V 3-Pole NEMA 3R
Square D
Heavy duty 200A, 600 VAC/VDC fusible 3-pole safety switch, NEMA 3R outdoor enclosure with viewing window.
$949.99
SKU: SD-VH364R
In Stock — ships from Murray, KY
1
Free ShippingFree on orders over $500.00
Questions? Call Us(270) 883-5924
30-Day ReturnsSee return policy
Product Details
Schneider Electric's Square D heavy duty safety switch is built to be tough and reliable in grueling conditions, with three times the NEMA standard durability.
This three-blade fusible switch is rated 200A at 600 VAC / 600 VDC, with a short circuit rating of 10kA or 200kA depending on fuses used. Type 3R galvannealed steel enclosure with a factory-installed viewing window. Accepts H, K and R fuses as shipped (field-modifiable for J fuses). Surface mount.
3-pole, 3-wire; a solid neutral kit can be field-installed. Wire range AWG 6 – 250 kcmil Al/Cu. Tested to UL98 and NEMA KS1, UL files E2875 and E154828.
Specifications
- Brand:
- Square D (Schneider Electric)
- Model:
- VH364R
- Amperage:
- 200A
- Voltage:
- 600 VAC / 600 VDC
- Poles:
- 3
- Enclosure:
- NEMA 3R
- Fuse types:
- H, K, R (J field-modifiable)
- Wire range:
- AWG 6 – 250 kcmil
Key Features
- Viewing window confirms switch state with door closed
- Heavy duty fusible 200A, 600 VAC/VDC
- Service-entrance rated with neutral or grounding kit
- Quick-make, quick-break mechanism
- Dual cover interlock
